Goodwill & Company

		[Chinese]

　

Air Screwdriver

Torque Control Type

Oil Xtra Series


GT-H4R	GT-H4PR	GT-H4RC


GT-H5R	GT-H5P	GT-H5RC

Model No.	Capacity			(mm)	No Load Speed (rpm)	Air Consumption (M/min)	Hose Coupling	Overall Length (m)	Weight (g)	Accessories
Model No.	Standard Screw	Tapping Screw	Wood Screw	Bolt	No Load Speed (rpm)	Air Consumption (M/min)	Hose Coupling	Overall Length (m)	Weight (g)	Bit	Plug

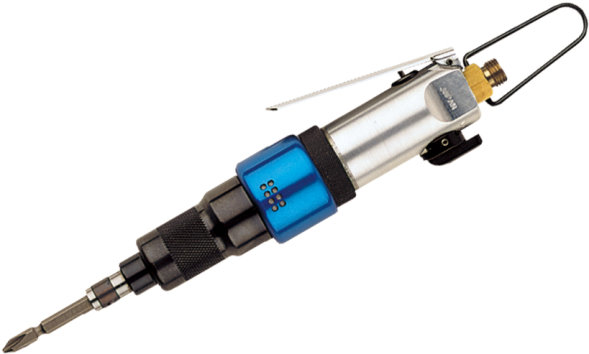

GT-H4R	3〜4	---	1.8〜24	3〜4	1.500	0.2	G 1/4	190	590	A14 +2X65G	BPN-2F

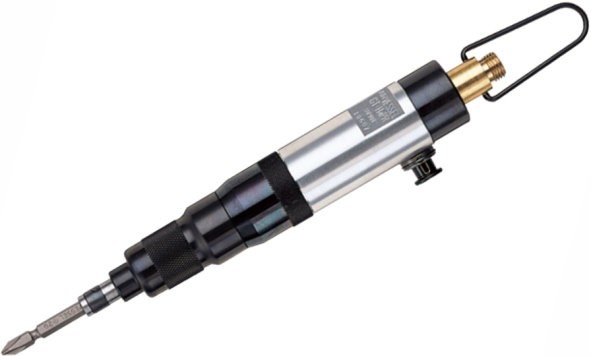

GT-H4PR	3〜4	---	1.8〜24	3〜4	1,500	0.19	G 1/4	213	610	A14 +2X65G	BPN-2F

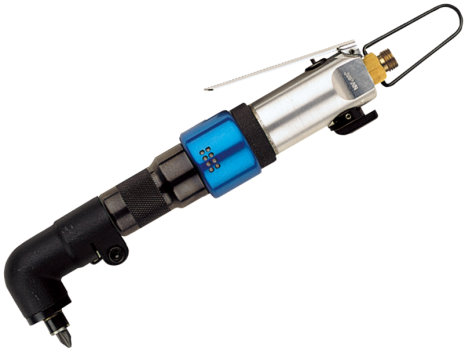

GT-H4RC	2.6〜3.5	---	---	2.6〜3.5	1.500	0.2	G 1/4	216	735	B39+2X23H	BPN-2F

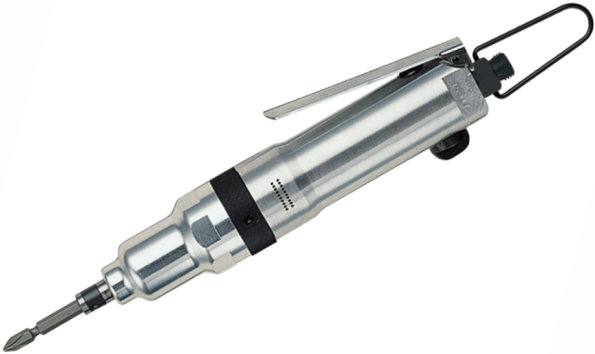

GT-H5R	4〜5	3.5〜4	27〜3.5	4〜5	1,500	0.25	G 1/4	225	880	A14 +2X65G	BPN-2F
GT-H5P	4〜5	3.5〜4	27〜3.5	4〜5	1.500	0.25	G 1/4	235	880	A14 +2X65G	BPN-2F

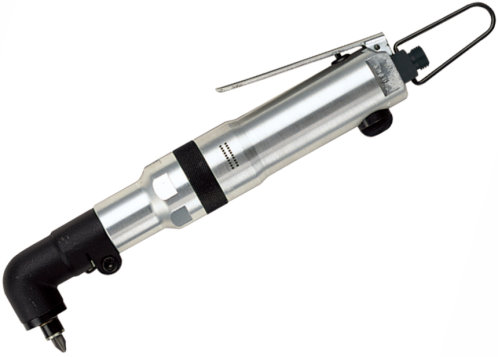

GT-H5RC	3.5〜45	---	---	3.5〜4.5	1,500	0.25	G 1/4	248	1,047	B39+2X23H	BPN-2F
