URYU |
|
|
|
Screwdrivers |
|
|
|
Torque Control Screwdrivers |
|
|
 |
 |
 |
 |
|
Straight Type
(Push-Start) |
Straight Type
(Lever-Start) |
Pistol |
Angle-Head |
|
|
|
Angle-Head |
|
|
|
|
 |
 |
|
US-LT30B-11C |
US-LT40B-05C |
US-LT40-03C(P) |
|
|
|
|
Specifications |
|
|
|
Model |
Capacity (Screw Size) |
Torque Range |
Free Speed (Approx.) |
Overall Length (about) |
Weight less Bit (about) |
From Center to Outside (about) |
Air Hose Size (inside Dia.) |
Average Air Consumption |
|
mm |
in |
Nm |
in-lbs |
min-1 |
mm |
in |
kg |
lb |
mm |
in |
mm |
in |
m3/min |
ft3/min |
|
US-LT30B-17C |
2.6 |
No.3 |
0.70-1.50 |
6.2-13.2 |
1700 |
295 |
10 3/4 |
0.7 |
1.54 |
36 |
1 27/64 |
6.35 |
1/4 |
0.2 |
7 |
|
US-LT30B-11C |
2.2 |
No.2 |
1.10-2.10 |
9.7-18.5 |
1100 |
295 |
10 3/4 |
0.7 |
1.54 |
36 |
1 27/64 |
6.35 |
1/4 |
0.2 |
7 |
|
US-LT40B-15C |
2.6 |
No.3 |
1.00-2.20 |
8.8-19.4 |
1500 |
314 |
12 25/32 |
0.9 |
1.98 |
36 |
1 27/64 |
6.35 |
1/4 |
0.3 |
10.5 |
|
US-LT40B-08C |
3 |
No.5 |
1.60-4.00 |
14.1-35.2 |
800 |
314 |
12 25/32 |
0.9 |
1.98 |
36 |
1 27/64 |
6.35 |
1/4 |
0.3 |
10.5 |
|

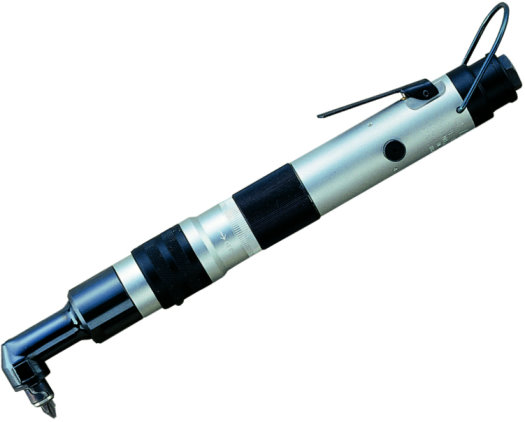

US-LT40B-05C |
3 |
No.5 |
2.30-5.70 |
20.2-50.2 |
500 |
325 |
13 7/32 |
0.95 |
2.09 |
38.5 |
1 33/64 |
6.35 |
1/4 |
0.3 |
10.5 |
|
US-LT40-08C(P) |
3.5 |
No.6 |
1.60-4.00 |
14.1-35.2 |
800 |
314 |
12 25/32 |
0.9 |
1.98 |
32 |
1 17/64 |
6.35 |
1/4 |
0.3 |
10.5 |
|
US-LT40-05C(P) |
4 |
No.8 |
2.30-5.70 |
20.2-50.2 |
500 |
325 |
13 7/32 |
0.95 |
2.09 |
35.5 |
1 25/64 |
6.35 |
1/4 |
0.3 |
10.5 |
|

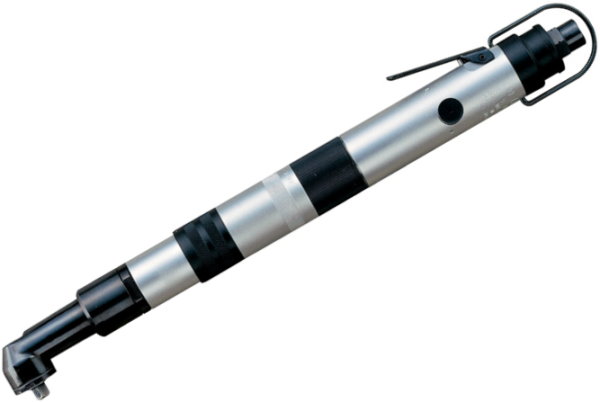

US-LT40-03C(P) |
4 |
No.8 |
5.00-10.0 |
44-88 |
300 |
359 |
14 11/64 |
1.1 |
2.42 |
35.5 |
1 25/64 |
6.35 |
1/4 |
0.3 |
10.5 |
|
|
|
|
Recommended Air Pressure : 0.5MPa
(72psi)
|
|
|
|
Air Inlet Size : NPT1/4" |
|
|
|
Hex. Size of Bit : 6.35mm (1/4") for
B-Type |
|
|
|
Sq Size
of Anvil : 6.35mm (1/4") for US-LT40 Series
|
|
|
|
