URYU |
|
|
|
Screwdrivers |
|
|
|
Torque Control Screwdrivers |
|
|
|
|
|
|
|
Straight Type (Push-Start) |
|
|
 |
 |
 |
 |
 |
|

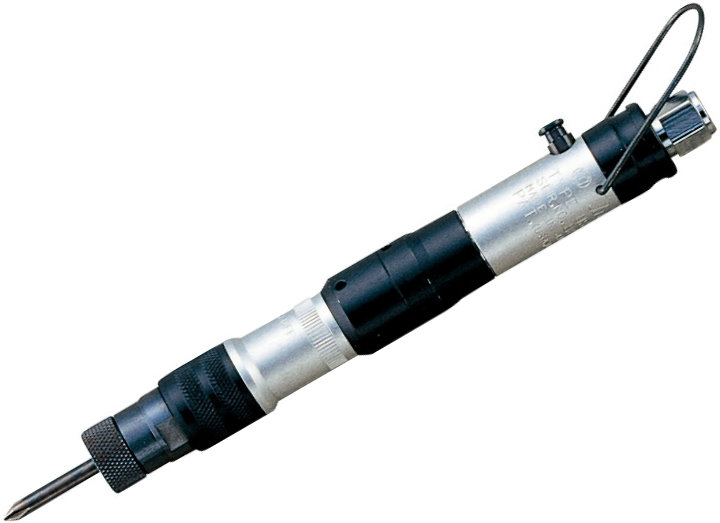

US-LT10B |

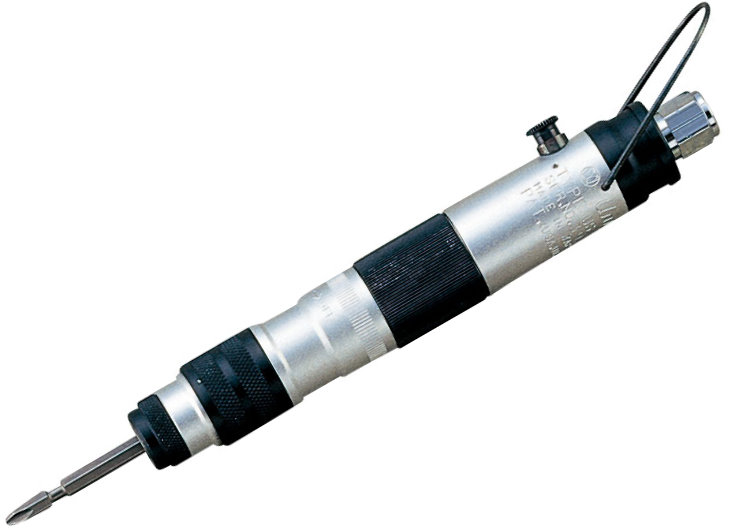

US-LT20B-10 |

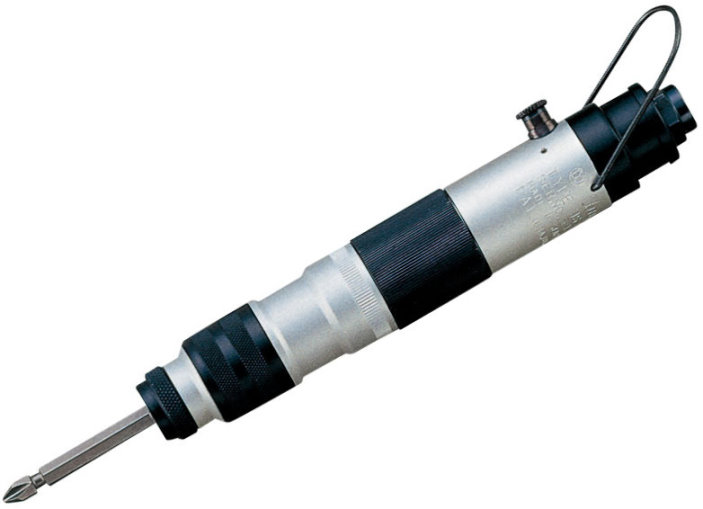

US-LT30B-11 |
US-LT40B-08 |

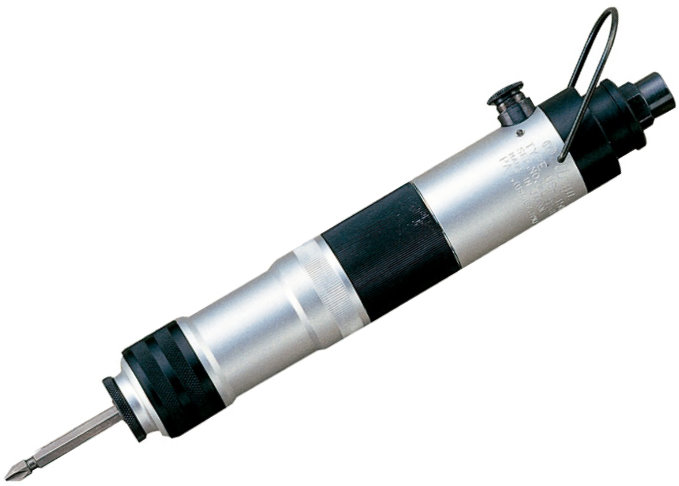

US-LT50B-05 |
|
|
|
Specifications |
|
|
|
Model |
Capacity (Screw Size) |
Torque Range |
Free Speed (Approx.) |
Overall Length (about) |
Weight less Bit (about) |
From Center to Outside (about) |
Air Hose Size (inside Dia.) |
Average Air Consumption |
|
mm |
in |
Nm |
in-lbs |
min-1 |
mm |
kg |
mm |
mm |
in |
m3/min |
ft3/min |
|
US-LT10B |
2.6 |
No.3 |
0.20-0.60 |
1.8-5.3 |
1000 |
191 |
0.29 |
12.0 |
6.35 |
1/4 |
0.15 |
5.2 |
|
US-LT20A-26 |
2.2 |
No.2 |
0.15-0.35 |
1.3-3.1 |
2600 |
180 |
0.34 |
13.0 |
6.35 |
1/4 |
0.16 |
5.6 |
|
US-LT20B-26 |
2.2 |
No.2 |
0.15-0.35 |
1.3-3.1 |
2600 |
180 |
0.34 |
13.0 |
6.35 |
1/4 |
0.16 |
5.6 |
|
US-LT20A-18 |
2.6 |
No.3 |
0.25-0.70 |
2.2-6.2 |
1800 |
180 |
0.34 |
13.0 |
6.35 |
1/4 |
0.16 |
5.6 |
|
US-LT20B-18 |
2.6 |
No.3 |
0.25-0.70 |
2.2-6.2 |
1800 |
180 |
0.34 |
13.0 |
6.35 |
1/4 |
0.16 |
5.6 |
|
US-LT20A-10 |
3 |
No.5 |
0.35-1.10 |
3.1-9.68 |
1000 |
180 |
0.34 |
13.0 |
6.35 |
1/4 |
0.16 |
5.6 |
|
US-LT20B-10 |
3 |
No.5 |
0.35-1.10 |
3.1-9.68 |
1000 |
180 |
0.34 |
13.0 |
6.35 |
1/4 |
0.16 |
5.6 |
|
US-LT30A-23 |
3 |
No.5 |
0.40-1.00 |
3.5-8.8 |
2300 |
187 |
0.43 |
15.5 |
6.35 |
1/4 |
0.20 |
7.0 |
|
US-LT30B-23 |
3 |
No.5 |
0.40-1.00 |
3.5-8.8 |
2300 |
187 |
0.43 |
15.5 |
6.35 |
1/4 |
0.20 |
7.0 |
|
US-LT30A-17 |
3.5 |
No.6 |
0.70-1.50 |
6.2-13.2 |
1700 |
187 |
0.43 |
15.5 |
6.35 |
1/4 |
0.20 |
7.0 |
|
US-LT30B-17 |
3.5 |
No.6 |
0.70-1.50 |
6.2-13.2 |
1700 |
187 |
0.43 |
15.5 |
6.35 |
1/4 |
0.20 |
7.0 |
|
US-LT30A-11 |
4 |
No.8 |
1.10-2.10 |
9.7-18.5 |
1100 |
187 |
0.43 |
15.5 |
6.35 |
1/4 |
0.20 |
7.0 |
|
US-LT30B-11 |
4 |
No.8 |
1.10-2.10 |
9.7-18.5 |
1100 |
187 |
0.43 |
15.5 |
6.35 |
1/4 |
0.20 |
7.0 |
|
US-LT40A-21 |
4 |
No.8 |
1.00-1.70 |
6.2-15.0 |
2100 |
209 |
0.65 |
16.5 |
6.35 |
1/4 |
0.30 |
10.5 |
|
US-LT40B-21 |
4 |
No.8 |
1.00-1.70 |
6.2-15.0 |
2100 |
209 |
0.65 |
16.5 |
6.35 |
1/4 |
0.30 |
10.5 |
|
US-LT40A-15 |
4 |
No.8 |
1.00-2.20 |
6.2-19.4 |
1500 |
209 |
0.65 |
16.5 |
6.35 |
1/4 |
0.30 |
10.5 |
|
US-LT40B-15 |
4 |
No.8 |
1.00-2.20 |
6.2-19.4 |
1500 |
209 |
0.65 |
16.5 |
6.35 |
1/4 |
0.30 |
10.5 |
|
US-LT40A-08 |
5 |
No.10 |
1.60-4.00 |
14.1-35.2 |
800 |
209 |
0.65 |
16.5 |
6.35 |
1/4 |
0.30 |
10.5 |
|
US-LT40B-08 |
5 |
No.10 |
1.60-4.00 |
14.1-35.2 |
800 |
209 |
0.65 |
16.5 |
6.35 |
1/4 |
0.30 |
10.5 |
|
US-LT50B-17 |
4-5 |
No.8-No.10 |
1.50-2.60 |
9.7-23.0 |
1700 |
240 |
1.00 |
19.5 |
9.50 |
3/8 |
0.50 |
17.5 |
|
US-LT50B-08 |
5-6 |
No.10-1/4 |
3.00-5.50 |
26.4-48.4 |
800 |
240 |
1.00 |
19.5 |
9.50 |
3/8 |
0.50 |
17.5 |
|
US-LT50B-05 |
5-6 |
No.10-1/4 |
5.00-10.5 |
44.0-92.4 |
480 |
240 |
1.00 |
19.5 |
9.50 |
3/8 |
0.50 |
17.5 |
|
|
|
|
Recommended Air Pressure : 0.5MPa
(72psi)
|
|
|
|
Air Inlet Size : NPT1/8" for US-LT10/20
series, NPT1/4" for US-LT30/40/50 series |
|
|
|
Hex. Size of Bit : 5mm (13/64") for
A-Type, 6.35mm (1/4") for B-Type |
|
|
|
