URYU


Screwdrivers


Cushion Clutch Type Screwdriver

Magnet Type Straight Type Push-to-start Throttle Type Pistol / Angle Type


Straight Type

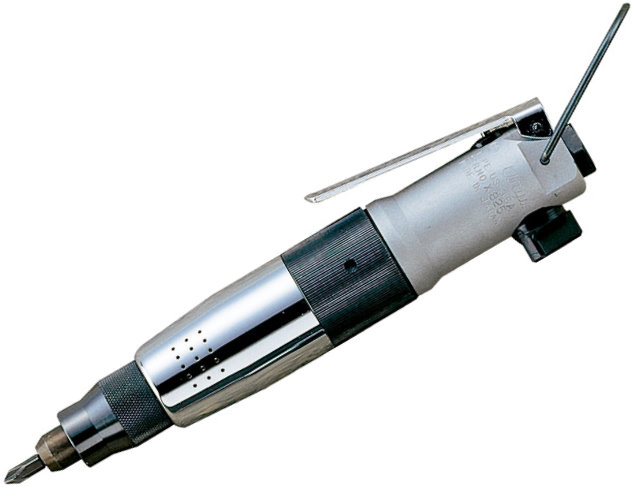

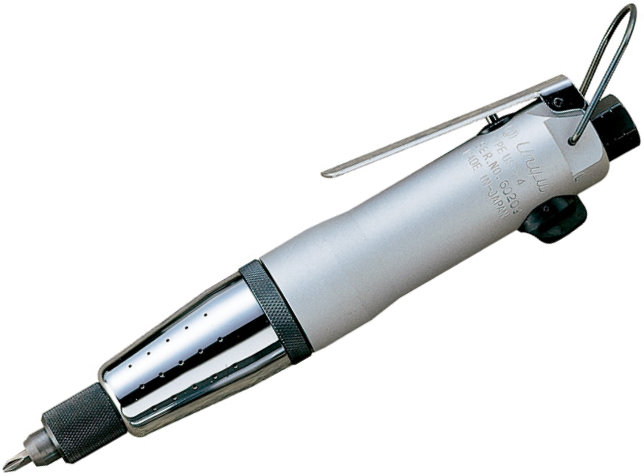

US-3.5A / US-3.5B US-4 US-5


Specifications

Model Capacity (Screw Size) Free Speed (Approx.) Overall Length (about) Weight less Socket or Bit (about) From Center to Outside (about) Hex. Size of Bit Air Hose Size Average Air Consumption
mm in min-1 mm in kg lb mm in mm in mm in m3/min ft3/min
US-3.5A 4 No.8 2000 196 7 23/32 0.6 1.32 17 43/64 5 13/64 6.35 1/4 0.2 7
US-3.5B 4 No.8 2000 214 8 27/64 0.63 1.39 17 43/64 6.35 1/4 6.35 1/4 0.2 7
US-4 4 No.8 1400 236 9 19/64 0.95 2.09 20 25/32 5 13/64 6.35 1/4 0.2 7
US-5 5 No.10 1400 236 9 19/64 1.1 2.42 21 53/64 6.35 1/4 6.35 1/4 0.2 7


Recommended Air Pressure : 0.4MPa (57psi)

Air Inlet Size : NPT1/4
