HIOS


Electric Screwdriver


Brush Screw Driver (DC)


CL Series

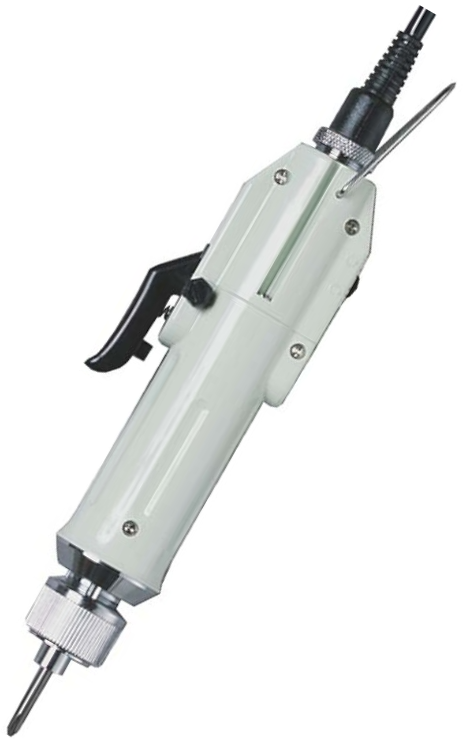

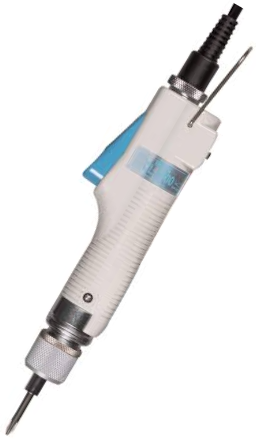

Mini Type
　 　

Model Name

 Lever Start type Model CL-2000 CL-3000 CL-4000
Push to Start type Model NIL CL-3000PS CL-4000PS
Hex shank type Model NIL NIL CL-4000X
Anti-electrostatic type Model NIL CL-3000ESD CL-4000ESD
Output Torque Range N.m 0.02 ~ 0.2 0.03 ~ 0.2 0.1 ~ 0.55
lbf.in 0.17 ~ 1.7 0.3 ~ 1.7 0.9 ~ 4.8
(kgf.cm) (0.2- 2) (0.3 - 2) (1 - 5.5)
Unloaded Rotation
(r.p.m) ± 10%		 High 690 1,000 1,000
Low 490 670 690
Screw Size (mm) Machine Screw 1.0 ~ 2.3 1.0 ~ 2.0 1.4 ~ 2.6
Tapping Screw 1.0 ~ 2.0 1.0 ~ 1.7 1.4 ~ 2.3
Bit Drive HIOS Shank H4 40mm H4 40mm H4 40mm
Hex Shank NIL NIL 1/4 HEX
Power Supply CLC-45 ○ ○ ○
CLC-60 ○ ○ ○
Accessories Spring Yellow spring (Ø1.0) Gold spring (Ø1.0) Blue spring (Ø1.0)
Carbon brush order code NIL A45-0420(1pair) CL4-0420(1pair)

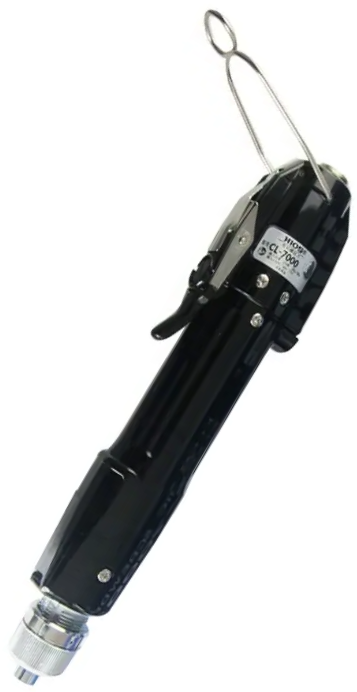

Standard Type
　 　 　 　 　
Model Name Lever Start type Model CL-6000 CL-6500 CL-7000
　 Push to Start type Model NIL CL-6500PS NIL
　 Hex shank type Model NIL CL-6500X CL-7000X
　 Anti-electrostatic type Model NIL CL-6500ESD CL-7000ESD
Output Torque Range N.m 0.2 ~ 1 0.3 ~ 1.6 0.3 ~ 2.5
lbf.in 1.7 ~ 8.8 2.6 ~ 14 2.6 ~ 22
(kgf.cm) (2 ~ 10) (3 - 16) (3 - 25)
Unloaded Rotation
(r.p.m) ± 10%		 High 800 900 750
Low 500 600 ---
Screw Size (mm) Machine Screw 2.0 ~ 3.0 2.0 ~ 4.0 2.0 ~ 5.0
Tapping Screw 2.0 ~ 2.6 2.0 ~ 3.0 2.0 ~ 4.0
Bit Drive HIOS Shank H5 60mm H5 60mm H5 60mm
Hex Shank 1/4 HEX 1/4 HEX 1/4 HEX
Power Supply CLC-45 ○ ○ Non support
CLC-60 ○ ○ ○
Accessories Spring NIL White spring (Ø1.8) Yellow spring (Ø2.2)
Carbon brush order code CL65-0490(1pair) CL65-0490(1pair) CL65-0490(1pair)

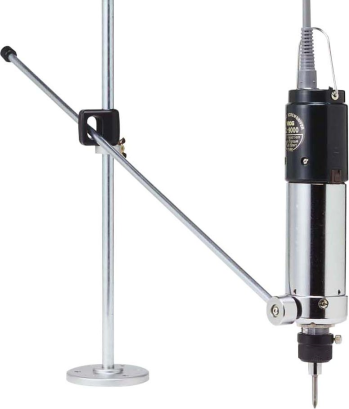

High Torque Type
　 　 　 　 　
Model Name Push to Start type Model CL-9000 　 　
Output Torque Range N.m 1.2 ~ 5 　 　
lbf.in 10 ~ 43 　 　
(kgf.cm) (12 ~ 50) 　 　
Unloaded Rotation High 530 　 　
(r.p.m) ± 10% Low --- 　 　
Screw Size (mm) Machine Screw 4.0 ~ 6.0 　 　
Tapping Screw 4.0 ~ 6.0 　 　
Bit Drive HIOS Shank Non support 　 　
Hex Shank 1/4 HEX 　 　
Power Supply CLC-80 ○ 　 　
Accessories Carbon brush order code CL9-0410(1pair) 　 　
