Yaesu

¡@

Tape Dispeners

¡@

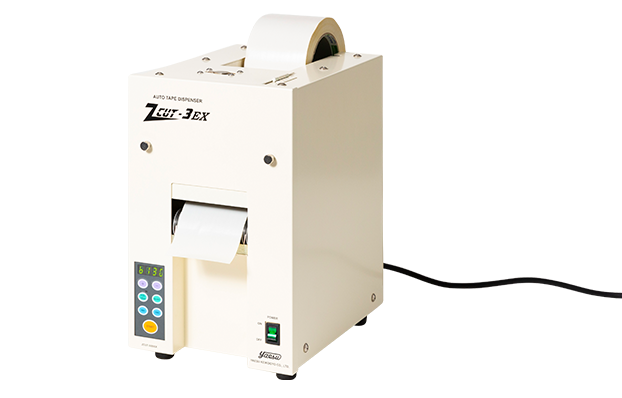

ZCUT-3EX

¡@

Apply on different kinds of industry and tapes.

¡@

¡@

Features :

¡´¡@New Structure of Cutting Method.

¡´¡@Using L type blade of utility knife which is easy to get and to change as well.

¡´¡@Speed and Efficiency improved.

¡´¡@Outside Diameter up to max. 240mm is possible to set.

¡´¡@Memory function of cutting length/Preset Counter are available.

*Some of usable tapes may not cut as depends on the material and tape brand.

¡@

*Cutting length may be beyond cutting tolerance as depends on the type of tapes.

¡@

*Specifications are subject to change without prior notice.

Specification :

¡@

Cutting Length (mm) 30 - 7000 (Manual Mode)
100 - 7000 (Auto Mode)
Tape Width (mm) 15 - 80
Max. Roll Diameter(mm) 240
Shape of Cutting Edge Straight
Length Memory Upto 7 programmable lengths & Countdown mode
Dimension (mm) W191 x H302 x D247
Weight (kg) 9.5
Rated Voltage AC 110 ~ 240V 50/60Hz 45W
Usable Tapes Protective Film, Aluminum Foil, Craft, Cloth, Glass Cloth, Paper, Double-Sided Tape and Others.
¡@
¡@

¡@
