Yaesu

¡@

Tape Dispeners

¡@

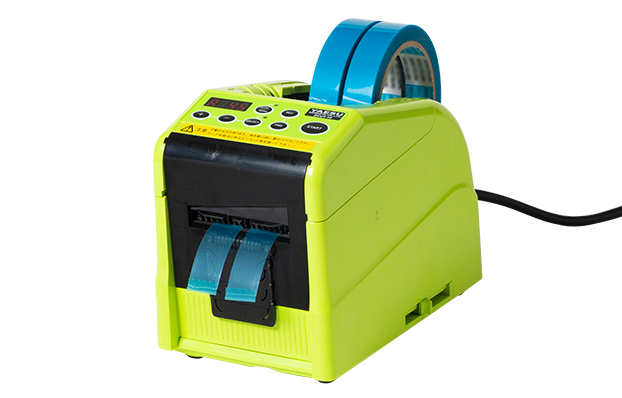

ZCUT-10

¡@

Tape Dispenser with Edge Folding Function

¡@

¡@

Features :

¡´¡@Edge Folding Function. Easy to remove tape.

¡´¡@Six different lengths can be programmed for cutting.

¡´¡@Two roll tapes can be cut at the same time due to Dual Photo Sensor.

¡´¡@A cut piece of tape is positioned to take out.

¡´¡@Set a tape without using bobbin.

¡´¡@Non-adhesive tapes can be cut.

¡´¡@Build-in Separator for cutting two rolls tape, Guide Plate, and Blade Oil.

*Some of usable tapes may not cut as depends on the material and tape brand.

¡@

*Cutting length may be beyond cutting tolerance as depends on the type of tapes.

¡@

*Specifications are subject to change without prior notice.

Specification :

¡@

Cutting Length (mm) 5-999
Folding Length (mm) 7
Tape Width (mm) 6 - 60
Max. Roll Diameter(mm) 300
Shape of Cutting Edge Straight / Folded
Length Memory 6 different lengths can be programmed for cutting.
Dimension (mm) W116 x H148 x D222
Weight (kg) 1.83
Rated Voltage AC 110 ~ 240V 50/60Hz 25W
Usable Tapes Craft, PP, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others
¡@

¡@
