OHMI


Electric Drive Bits

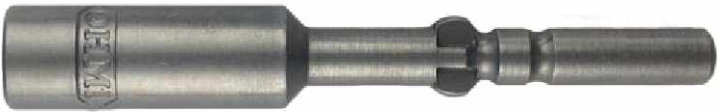

VH-5


Nut Setter

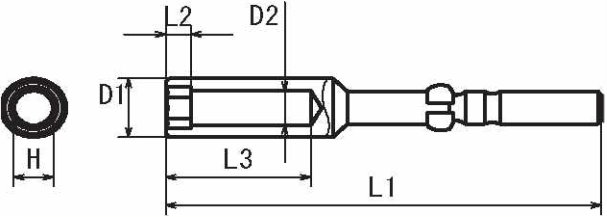

Order No. H L2 D1 L1 D2 L3 Weight
(mm) (mm) (mm) (mm) (mm) (mm) (g)

VH-5B H5X60

 5 2.5 8 60 3.5 20 13

VH-5B H5.5X60

 5.5 3.5 9 60 5.3 20 13

VH-5B H5.5X80

 5.5 3.5 9 80 5.3 20 12

VH-5B H5.5X100

 5.5 3.5 9 100 5.3 20 15

VH-5B H5.5X120

 5.5 3.5 9 120 5.3 20 26

VH-5B H5.5X150

 5.5 3.5 9 150 5.3 20 33

VH-5B H6X60

 6 3.5 10 60 4.5 20 17

VH-5B H7X80

 7 4 11 80 5.5 20 23

VH-5B H8X80

 8 4.5 13 80 6 25 23

VH-5B H10x80

 10 5.5 16 80 8 25 30
