OHMI


Electric Drive Bits


VH-4


Hex-wave

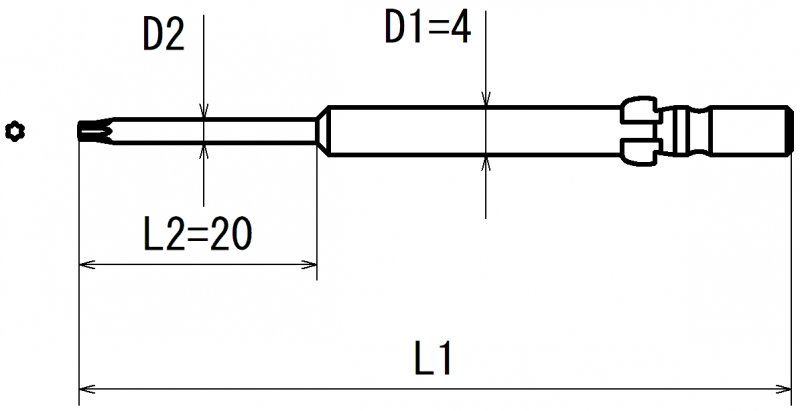

Order No. Point D1 L1 D2 L2 Weight
Size (mm) (mm) (mm) (mm) (g)
VH-4T T1x4x40(1.5x20) T1 4 40 1.5 20 2
VH-4T T1x4x60(1.5x20) T1 4 60 1.5 20 4
VH-4T T2x4x40(1.5x20) T2 4 40 1.5 20 2
VH-4T T2x4x60(1.5x20) T2 4 60 1.5 20 4
VH-4T T3x4x40(1.7x20) T3 4 40 1.7 20 2
VH-4T T3x4x60(1.7x20) T3 4 60 1.7 20 4
VH-4T T4x4x40(1.8x20) T4 4 40 1.8 20 2
VH-4T T4x4x60(1.8x20) T4 4 60 1.8 20 4
VH-4T T5x4x40(2x20) T5 4 40 2 20 2
VH-4T T5x4x60(2x20) T5 4 60 2 20 4
VH-4T T6x4x40(2.5x20) T6 4 40 2.5 20 2
VH-4T T6x4x60(2.5x20) T6 4 60 2.5 20 4
VH-4T T8x4x40(3x20) T8 4 40 3 20 3
VH-4T T8x4x60(3x20) T8 4 60 3 20 5
VH-4T T10x4x40(3x20) T10 4 40 3 20 3
VH-4T T10x4x60(3x20) T10 4 60 3 20 5
