OHMI


Air Drive Bits


V-17


Hexagon

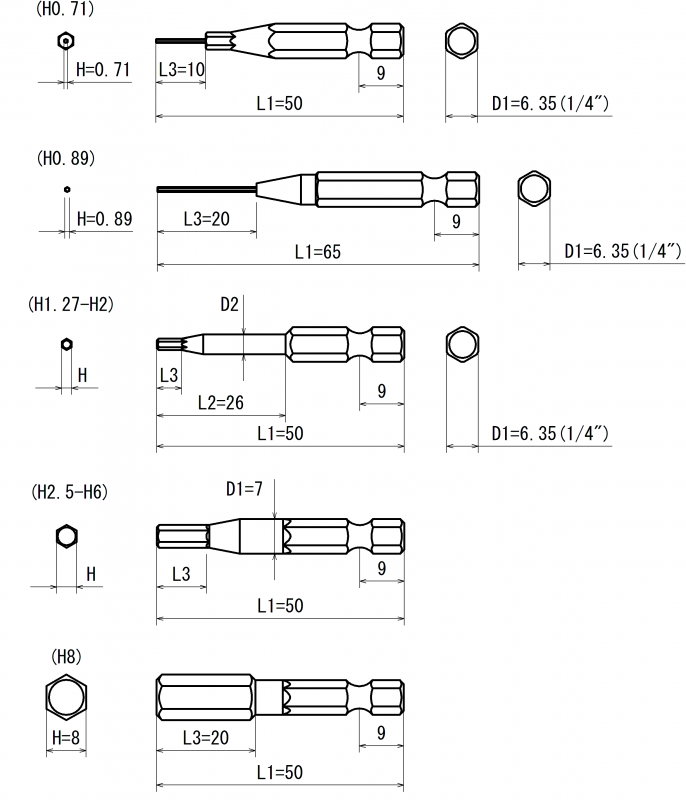

Order No. H L3 D1 L1 D2 L2 Weight
(mm) (mm) (mm) (mm) (mm) (mm) (g)

V-17X (H0.71x10)x6.35x50 B

 0.71 10 6.35(hex) 50 — — 9

V-17X (H0.89x20)x6.35x65 B

 0.89 20 6.35(hex) 65 — — 10

V-17X H1.27x6.35x50(3x26)

 1.27 2 6.35(hex) 50 3 26 7

V-17X H1.5x6.35x50(3x26)

 1.5 3 6.35(hex) 50 3 26 7

V-17X H2x6.35x50(4x26)

 2 5 6.35(hex) 50 4 26 8

V-17X H2.5x7x50

 2.5 6 7 50 — — 10

V-17X H3x7x50

 3 8 7 50 — — 10

V-17X H4x7x50

 4 10 7 50 — — 11

V-17X H5x7x50

 5 15 7 50 — — 11

V-17X H6x7x50

 6 20 7 50 — — 12

V-17X H8x50

 8 20 — 50 — — 16
