OHMI


Air Drive Bits


V-17


Hex-wave (Tamper Proof)

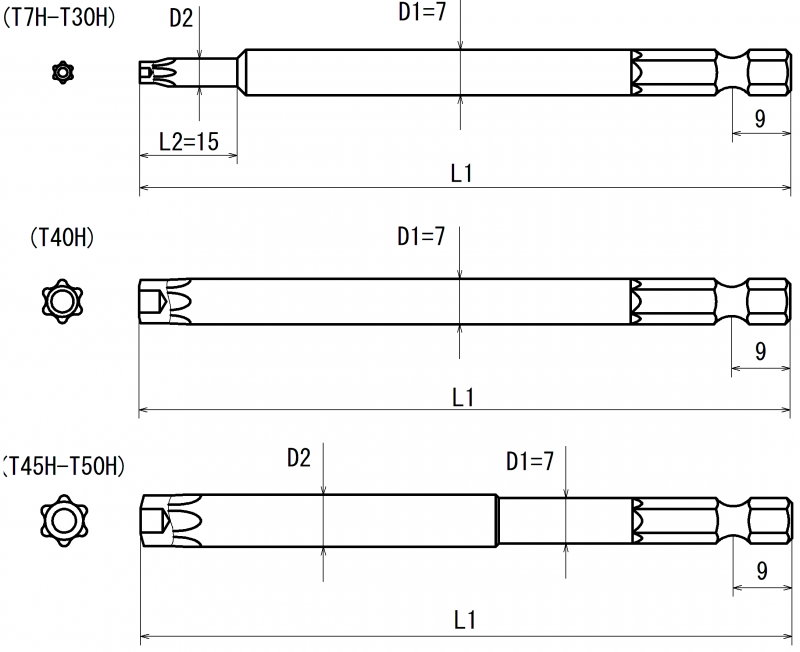

Order No. Point D1 L1 D2 L2 Weight
Size (mm) (mm) (mm) (mm) (g)
V-17T T7Hx7x50(2.5x15) * T7H 7 50 2.5 15 *
V-17T T7Hx7x75(2.5x15) * T7H 7 75 2.5 15 *
V-17T T8Hx7x75(3x15) T8H 7 75 3 15 17
V-17T T8Hx7x100(3x15) T8H 7 100 3 15 24
V-17T T9Hx7x50(3.3x15) * T9H 7 50 3.3 15 *
V-17T T9Hx7x75(3.3x15) * T9H 7 75 3.3 15 *
V-17T T10Hx7x75(3.6x15) T10H 7 75 3.6 15 17
V-17T T10Hx7x100(3.6x15) T10H 7 100 3.6 15 25
V-17T T15Hx7x75(4.3x15) T15H 7 75 4.3 15 18
V-17T T15Hx7x100(4.3x15) T15H 7 100 4.3 15 25
V-17T T20Hx7x75(5x15) T20H 7 75 5 15 18
V-17T T20Hx7x100(5x15) T20H 7 100 5 15 26
V-17T T25Hx7x75(5.5x15) T25H 7 75 5.5 15 19
V-17T T25Hx7x100(5.5x15) T25H 7 100 5.5 15 26
V-17T T27Hx7x75(6x15) T27H 7 75 6 15 19
V-17T T27Hx7x100(6x15) T27H 7 100 6 15 26
V-17T T30Hx7x75(6.5x15) T30H 7 75 6.5 15 19
V-17T T30Hx7x100(6.5x15) T30H 7 100 6.5 15 27
V-17T T40Hx7x75 T40H 7 75 — — 20
V-17T T40Hx7x100 T40H 7 100 — — 27
V-17T T45Hx8x75 T45H 7 75 8 — 23
V-17T T45Hx8x100 T45H 7 100 8 — 32
V-17T T50Hx9x75 T50H 7 75 9 — 25
V-17T T50Hx9x100 T50H 7 100 9 — 38
* Custom made item.
