AC Series |
|
|
AC Linear Free Piston Vacuum Pump |
|
|
|
|
|
VP0435A 25L/min - 350mmHg |
|
|
Feature of product
l Vacuum degree: -46.7kPa{350mmHg}
l Output air volume: 25L/min
l Input voltage: AC110V/AC220V
l Power consumption: 39W
l Current amount: 1.1A / 1.0A
l Suction hole diameter: Rc 1/4
l Air outlet diameter: Rc 1/4
l Line length: 200 ±15mm
l Dimensions: 208(L) x 104(W) x 150(H)mm
l Weight: 2.3Kg
|
|
 |
|
|
|
|

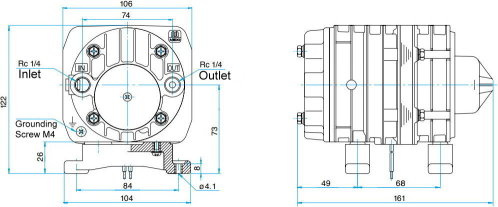

| External dimension drawing | |
|
|
|
|
