HIOS



Assembly Aids

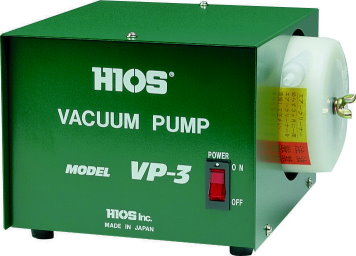

Vacuum Pump



 VP-3

 Picks up a screw to the bit tip with vacuum pressure.


Specification

Primary Input power AC100V, 120V, 220V-240V ±5%
Max. Power Consumption 39W±20%
Ultimate Vacuum -350mm Hg
Air Capacity 25L / min
Dimensions (mm) 200×188×142 (H)
Weight (kg) 3.8
Plug Type A-1/A-2/A-3/C/BF/S

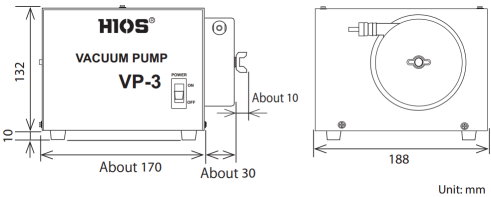

External Drawing


Plug Type
A-1 (100V) A-2 (120V) A-3 (220V)

C (220V) BF (220V) S (220V)
