零件 / 配件

　

批咀

　

OHMI近江精機

　

風批咀

　

V-17

　

梅花

　

　
　

　

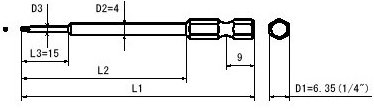

產品編號

梅花

D1

L1

D2xL2

D3xL3

重量

紀號

(mm)

(mm)

(mm)

(mm)

(g)
　

　

　

V-17T T1x6.35x50(1.5x15,4x28)

T1

6.35

50

4x28

1.5x15

7

V-17T T1x6.35x75(1.5x15,4x53)

T1

6.35

75

4x53

1.5x15

9

V-17T T2x6.35x50(1.5x15,4x28)

T2

6.35

50

4x28

1.5x15

7

V-17T T2x6.35x75(1.5x15,4x53)

T2

6.35

75

4x53

1.5x15

9

V-17T T3x6.35x50(1.7x15,4x28)

T3

6.35

50

4x28

1.7x15

7

V-17T T3x6.35x75(1.7x15,4x53)

T3

6.35

75

4x53

1.7x15

9

V-17T T4x6.35x50(1.8x15,4x28)

T4

6.35

50

4x28

1.8x15

7

V-17T T4x6.35x75(1.8x15,4x53)

T4

6.35

75

4x53

1.8x15

9

V-17T T5x6.35x50(2x15,4x28)

T5

6.35

50

4x28

2x15

7

V-17T T5x6.35x75(2x15,4x53)

T5

6.35

75

4x53

2x15

9
　
　
　
　 產品編號 梅花 D1 L1 D2 L2 重量
紀號 (mm) (mm) (mm) (mm) (g)

　

　

 V-17T T6x7x50(2.5x15) T6 7 50 2.5 15 9
V-17T T6x7x75(2.5x15) T6 7 75 2.5 15 17
V-17T T6x7x100(2.5x15) T6 7 100 2.5 15 24
V-17T T7x7x50(2.5x15) T7 7 50 2.5 15 9
V-17T T7x7x75(2.5x15) T7 7 75 2.5 15 17
V-17T T7x7x100(2.5x15) T7 7 100 2.5 15 24
V-17T T8x7x50(3x15) T8 7 50 3 15 9
V-17T T8x7x75(3x15) T8 7 75 3 15 17
V-17T T8x7x100(3x15) T8 7 100 3 15 24
V-17T T9x7x50(3.3x15) * T9 7 50 3.3 15 *
V-17T T9x7x75(3.3x15) * T9 7 75 3.3 15 *
V-17T T9x7x100(3.3x15) * T9 7 100 3.3 15 *
　
* 客戶特製型號
　
　

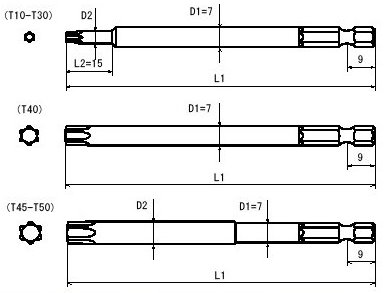

　 產品編號 梅花 D1 L1 D2 L2 重量
紀號 (mm) (mm) (mm) (mm) (g)

　

　

 V-17T T10x7x50(3.6x15) T10 7 50 3.6 15 10
V-17T T10x7x75(3.6x15) T10 7 75 3.6 15 17
V-17T T10x7x100(3.6x15) T10 7 100 3.6 15 25
V-17T T15x7x50(4.3x15) T15 7 50 4.3 15 10
V-17T T15x7x75(4.3x15) T15 7 75 4.3 15 18
V-17T T15x7x100(4.3x15) T15 7 100 4.3 15 25
V-17T T20x7x50(5x15) T20 7 50 5 15 11
V-17T T20x7x75(5x15) T20 7 75 5 15 18
V-17T T20x7x100(5x15) T20 7 100 5 15 26
V-17T T20x7x150(5x15) T20 7 150 5 15 40
V-17T T25x7x50(5.5x15) T25 7 50 5.5 15 11
V-17T T25x7x75(5.5x15) T25 7 75 5.5 15 19
V-17T T25x7x100(5.5x15) T25 7 100 5.5 15 26
V-17T T25x7x150(5.5x15) T25 7 150 5.5 15 41
V-17T T27x7x50(6x15) T27 7 50 6 15 12
V-17T T27x7x75(6x15) T27 7 75 6 15 19
V-17T T27x7x100(6x15) T27 7 100 6 15 26
V-17T T27x7x150(6x15) T27 7 150 6 15 41
V-17T T30x7x50(6.5x15) T30 7 50 6.5 15 12
V-17T T30x7x75(6.5x15) T30 7 75 6.5 15 19
V-17T T30x7x100(6.5x15) T30 7 100 6.5 15 27
V-17T T30x7x150(6.5x15) T30 7 150 6.5 15 42
V-17T T40x7x50 T40 7 50 — — 13
V-17T T40x7x75 T40 7 75 — — 20
V-17T T40x7x100 T40 7 100 — — 28
V-17T T40x7x150 T40 7 150 — — 43
V-17T T45x8x75 T45 7 75 8 — 23
V-17T T45x8x100 T45 7 100 8 — 33
V-17T T50x9x75 T50 7 75 9 — 26
V-17T T50x9x100 T50 7 100 9 — 38
　
　

　
