零件 / 配件
批咀
OHMI近江精機
風批咀
V-17
|
|
十字
|
|
|
|
|
產品編號 |
先前端 |
D1 |
L1 |
Hardness |
重量 |
|
紀號 |
(mm) |
(mm) |
|
(g) |
|
 |
V-17 No.1x6.35x23 |
No.1 |
6.35(hex) |
23 |
— |
4 |
|
V-17 No.1x6.35x30 |
No.1 |
6.35(hex) |
30 |
— |
6 |
|
V-17 No.1x6.35x40 |
No.1 |
6.35(hex) |
40 |
— |
9 |
|
V-17 No.1x7x50 |
No.1 |
7 |
50 |
— |
12 |
|
V-17 No.1x7x75 |
No.1 |
7 |
75 |
— |
19 |
|
V-17 No.1x7x100 |
No.1 |
7 |
100 |
— |
27 |
|
V-17 No.1x7x120 |
No.1 |
7 |
120 |
— |
33 |
|
V-17 No.1x7x150 |
No.1 |
7 |
150 |
— |
42 |
|
V-17 No.1x7x200 |
No.1 |
7 |
200 |
— |
56 |
|
V-17 No.1x7x250 |
No.1 |
7 |
250 |
— |
* |
|
V-17 No.1x7x300 |
No.1 |
7 |
300 |
— |
* |
|
V-17 No.2x6.35x23 |
No.2 |
6.35(hex) |
23 |
— |
4 |
|
V-17 No.2x6.35x30 |
No.2 |
6.35(hex) |
30 |
— |
6 |
|
V-17 No.2x6.35x40 |
No.2 |
6.35(hex) |
40 |
— |
9 |
|
V-17 No.2x7x50 N * |
No.2 |
7 |
50 |
N |
12 |
|
V-17 No.2x7x50 Y * |
No.2 |
7 |
50 |
Y |
12 |
|
V-17 No.2x7x75 N * |
No.2 |
7 |
75 |
N |
19 |
|
V-17 No.2x7x75 Y * |
No.2 |
7 |
75 |
Y |
19 |
|
V-17 No.2x7x100 N * |
No.2 |
7 |
100 |
N |
27 |
|
V-17 No.2x7x100 Y * |
No.2 |
7 |
100 |
Y |
27 |
|
V-17 No.2x7x120 |
No.2 |
7 |
120 |
— |
33 |
|
V-17 No.2x7x150 N * |
No.2 |
7 |
150 |
N |
42 |
|
V-17 No.2x7x150 Y * |
No.2 |
7 |
150 |
Y |
42 |
|
V-17 No.2x7x200 |
No.2 |
7 |
200 |
— |
56 |
|
V-17 No.2x7x250 |
No.2 |
7 |
250 |
— |
71 |
|
V-17 No.2x7x300 |
No.2 |
7 |
300 |
— |
86 |
|
V-17 No.3x6.35x30 |
No.3 |
6.35(hex) |
30 |
— |
6 |
|
V-17 No.3x7x50 |
No.3 |
7 |
50 |
— |
12 |
|
V-17 No.3x7x75 |
No.3 |
7 |
75 |
— |
20 |
|
V-17 No.3x7x100 |
No.3 |
7 |
100 |
— |
27 |
|
V-17 No.3x7x120 |
No.3 |
7 |
120 |
— |
33 |
|
V-17 No.3x7x150 |
No.3 |
7 |
150 |
— |
42 |
|
V-17 No.3x7x200 |
No.3 |
7 |
200 |
— |
57 |
|
V-17 No.3x7x250 |
No.3 |
7 |
250 |
— |
72 |
|
V-17 No.3x7x300 |
No.3 |
7 |
300 |
— |
87 |
|
|
|
*

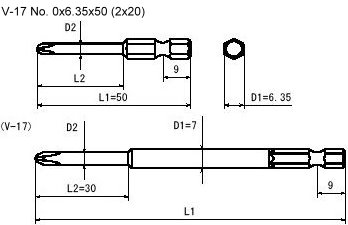

客戶特製型號
* 有二種硬度，但如沒特別指明，只會銷售"N"(普通硬度)
硬度 … 加硬 …
Y 普通硬度 …
N |
|
|
|
|
|
|
產品編號 |
先前端 |
D1 |
L1 |
D2 |
L2 |
重量 |
|
紀號 |
(mm) |
(mm) |
(mm) |
(mm) |
(g) |
|
 |
V-17 No.0x6.35x50(2x20) |
No.0 |
6.35(hex) |
50 |
2 |
20 |
8 |
|
V-16 No.0x6.35x50(3.8x28) |
No.0 |
6.35(hex) |
50 |
3.8 |
28 |
7 |
|
V-17 No.0x7x75(3x30) |
No.0 |
7 |
75 |
3 |
30 |
13 |
|
V-16 No.1x6.35x50(3.8x28) |
No.1 |
6.35(hex) |
50 |
3.8 |
28 |
7 |
|
V-17 No.1x7x75(3.5x30) |
No.1 |
7 |
75 |
3.5 |
30 |
14 |
|
V-16 No.2x6.35x50(3.8x28) |
No.2 |
6.35(hex) |
50 |
3.8 |
28 |
7 |
|
V-17 No.2x7x75(3.5x30) |
No.2 |
7 |
75 |
3.5 |
30 |
14 |
|
V-17 No.2x7x75(4.5x30) |
No.2 |
7 |
75 |
4.5 |
30 |
15 |
|
V-32 No.2x7x75(4.5x45) |
No.2 |
7 |
75 |
4.5 |
45 |
12 |
|
V-17 No.2x7x100(4.5x30) |
No.2 |
7 |
100 |
4.5 |
30 |
23 |
|
V-32 No.2x7x100(4.5x70) |
No.2 |
7 |
100 |
4.5 |
70 |
15 |
|
V-32 No.2x7x150(4.5x120) |
No.2 |
7 |
150 |
4.5 |
120 |
21 |
|
|
|
|
|
(磁化) |
|
|
|
|
產品編號 |
先前端 |
D1 |
L1 |
D2 |
L2 |
重量 |
|
紀號 |
(mm) |
(mm) |
(mm) |
(mm) |
(g) |
|
 |
V-17
No.0x7x75(1.4x20) MAG |
No.0 |
7 |
75 |
1.4 |
20 |
15 |
|
V-17 No.0x7x75(2x20)
MAG |
No.0 |
7 |
75 |
2 |
20 |
15 |
|
V-17
No.1x7x75(2.3x20) MAG |
No.1 |
7 |
75 |
2.3 |
20 |
15 |
|
V-17
No.1x7x75(3.2x30) MAG |
No.1 |
7 |
75 |
3.2 |
30 |
14 |
|
V-17 No.2x7x75(3x30)
MAG |
No.2 |
7 |
75 |
3 |
30 |
14 |
|
V-17
No.2x7x75(3.2x30) MAG |
No.2 |
7 |
75 |
3.2 |
30 |
14 |
|
|
|
|
