零件 / 配件

　

批咀

　

OHMI近江精機

　

風批咀

　

V-17

　

六角套筒

　

　

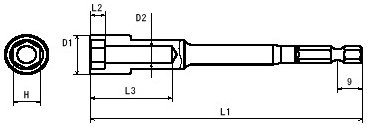

外六角套筒
　
　 產品編號 H L2 D1 L1 D2 L3 重量
(mm) (mm) (mm) (mm) (mm) (mm) (g)

　

　

　

　

　

　

　

　

　

V-17B H5x32 *

 5 2.5 8 32 5 3.5 9

V-17B H5.5x32 *

 5.5 3.5 9 32 5.5 4.5 9

V-17B H5.5x9.5x50

 5.5 4 9.5 50 3.5 15 14

V-17B H5.5x70

 5.5 3.5 9 70 5.3 19 22

V-17B H5.5x100

 5.5 3.5 9 100 5.3 19 31

V-17B H5.5x150

 5.5 3.5 9 150 5.3 19 46

V-17B H6x32 *

 6 3.5 10 32 6 5 10

V-17B H6x9.5x50

 6 4 9.5 50 4 15 14

V-17B H7x32 *

 7 4 11 32 7 5.5 9

V-17B H7x11x50

 7 5 11 50 4.5 20 14

V-17B H8x32 *

 8 4.5 13 32 8 6 11

V-17B H8x13x50

 8 5.5 13 50 5.5 20 17

V-17B H9x32 *

 9 5 13 32 9 6.5 12

V-17B H10x32 *

 10 5.5 16 32 10 7 18

V-17B H10x15x50

 10 6 15 50 7 20 32

V-17B H10x70

 10 5.5 16 70 7 25 37

V-17B H10x100

 10 5.5 16 100 7 30 50

V-17B H10x150

 10 5.5 16 150 7 30 69

V-17B H10x200

 10 5.5 16 200 7 30 81

V-17B H11x70

 11 6 16 70 9 25 31

V-17B H11x100

 11 6 16 100 9 30 43

V-17B H11x150

 11 6 16 150 9 30 62

V-17B H12x34 *

 12 7 18 34 12 9.5 20

V-17B H12x70

 12 7 18 70 9 25 42

V-17B H12x100

 12 7 18 100 9 30 55

V-17B H12x150

 12 7 18 150 9 30 74

V-17B H12x200

 12 7 18 200 9 30 94

V-17B H13x70

 13 7.5 20 70 10 25 46

V-17B H13x100

 13 7.5 20 100 10 30 58

V-17B H13x150

 13 7.5 20 150 10 30 80

V-17B H14x70

 14 7.5 20 70 11 25 46

V-17B H14x100

 14 7.5 20 100 11 30 58

V-17B H14x150

 14 7.5 20 150 11 30 78

V-17B H14x200

 14 7.5 20 200 11 30 97

V-17B H17x70

 17 8 24 70 13 25 64

V-17B H17x100

 17 8 24 100 13 30 79

V-17B H17x150

 17 8 24 150 13 30 99
　
　

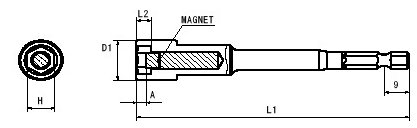

外六角套筒 (固定磁鐵)
　
　 產品編號 H L2 D1 L1 A 重量
(mm) (mm) (mm) (mm) (mm) (g)

　

　

 V-17B H5.5x70 MAG 5.5 3.5 9 70 within 3.5 *
V-17B H5.5x100 MAG 5.5 3.5 9 100 within 3.5 *
V-17B H5.5x150 MAG 5.5 3.5 9 150 within 3.5 *
V-17B H10x70 MAG 10 5.5 16 70 within 5.5 *
V-17B H10x100 MAG 10 5.5 16 100 within 5.5 *
V-17B H10x150 MAG 10 5.5 16 150 within 5.5 *
V-17B H 10x200 MAG 10 5.5 16 200 within 5.5 *
V-17B H12x70 MAG 12 7 18 70 within 7 *
V-17B H12x100 MAG 12 7 18 100 within 7 *
V-17B H12x150 MAG 12 7 18 150 within 7 *
V-17B H12x200 MAG 12 7 18 200 within 7 *
V-17B H13x70 MAG 13 7.5 20 70 within 7.5 *
V-17B H13x100 MAG 13 7.5 20 100 within 7.5 *
V-17B H13x150 MAG 13 7.5 20 150 within 7.5 *
V-17B H14x70 MAG 14 7.5 20 70 within 7.5 *
V-17B H14x100 MAG 14 7.5 20 100 within 7.5 *
V-17B H14x150 MAG 14 7.5 20 150 within 7.5 *
V-17B H14x200 MAG 14 7.5 20 200 within 7.5 *
V-17B H17x70 MAG 17 8 24 70 within 8 *
V-17B H17x100 MAG 17 8 24 100 within 8 *
V-17B H17x150 MAG 17 8 24 150 within 8 *
　
　

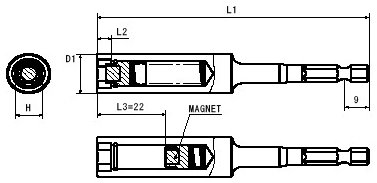

六角套筒 (滑動磁鐵)
　
　 產品編號 H L2 D1 L1 L3 重量
(mm) (mm) (mm) (mm) (mm) (g)

　

 V-17B H10x75 SM 10 5.5 16 75 22 *
V-17B H10x100 SM 10 5.5 16 100 22 *
V-17B H10x150 SM 10 5.5 16 150 22 *
V-17B H 10x200 SM 10 5.5 16 200 22 *
V-17B H12x75 SM 12 7 18 75 22 *
V-17B H12x100 SM 12 7 18 100 22 *
V-17B H12x150 SM 12 7 18 150 22 *
V-17B H12x200 SM 12 7 18 200 22 *
V-17B H13x75 SM 13 7.5 20 75 22 *
V-17B H13x100 SM 13 7.5 20 100 22 *
V-17B H13x150 SM 13 7.5 20 150 22 *
V-17B H14x75 SM 14 7.5 20 75 22 *
V-17B H14x100 SM 14 7.5 20 100 22 *
V-17B H14x150 SM 14 7.5 20 150 22 *
V-17B H17x75 SM 17 8 24 75 22 *
V-17B H17x100 SM 17 8 24 100 22 *
V-17B H17x150 SM 17 8 24 150 22 *
　
　
六角套筒 (磁環)
　
　 產品編號 H L2 D1 L1 D2 L3 重量
(mm) (mm) (mm) (mm) (mm) (mm) (g)

　

 V-17B H10x70 MR 10 5.5 16 70 7 25 *
V-17B H10x100 MR 10 5.5 16 100 7 30 *
V-17B H10x150 MR 10 5.5 16 150 7 30 *
V-17B H10x200 MR 10 5.5 16 200 7 30 *
V-17B H12x70 MR 12 7 18 70 9 25 *
V-17B H12x100 MR 12 7 18 100 9 30 *
V-17B H12x150 MR 12 7 18 150 9 30 *
V-17B H12x200 MR 12 7 18 200 9 30 *
V-17B H13x70 MR 13 7.5 20 70 10 25 *
V-17B H13x100 MR 13 7.5 20 100 10 30 *
V-17B H13x150 MR 13 7.5 20 150 10 30 *
V-17B H14x70 MR 14 7.5 20 70 11 25 *
V-17B H14x100 MR 14 7.5 20 100 11 30 *
V-17B H14x150 MR 14 7.5 20 150 11 30 *
V-17B H14x200 MR 14 7.5 20 200 11 30 *
V-17B H17x70 MR 17 8 24 70 13 25 *
V-17B H17x100 MR 17 8 24 100 13 30 *
V-17B H17x150 MR 17 8 24 150 13 30 *
　
* 客戶特製型號

　
