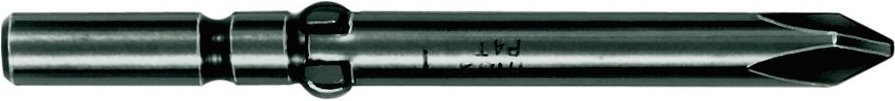

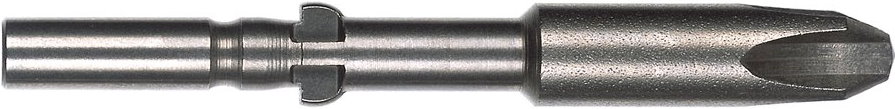

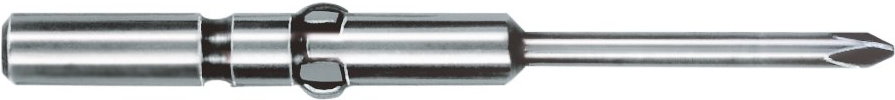

BP 十字批咀
| 刀桿 | 規格 | 標準品 全長(mm) | ||
| 先前端記號（該螺絲直徑） | 桿徑（∅） | 刀桿形狀 | ||
| H4(∅4) | #00 (HIOS 標準品) | 1.5 | B | 40 |
| #0 (M1.4-M2.6) | 1.2 | B | 40 | |
| #0 (M1.4-M2.6) | 1.5, 1.7 | B | 40, 60, 80 | |
| #0 (M1.4-M2.6) | 1.8 | B | 60 | |
| #0 (M1.4-M2.6) | 2.0 | B | 40, 60, 80, 120 | |
| #1 (M2.0-M2.6) | 3.0 | B | 40, 60, 80, 120 | |
| #1 (M2.0-M2.6) | 4.0 | A | 40, 60, 80, 120, 150, 180, 200 | |
| #2 (M3.0-M5.0) | 4.0 | A | 40, 60, 80, 120, 150 | |
| H5(∅5) | #0 (M1.4-M2.6) | 2.0 | B | 60 |
| #0 (M1.4-M2.6) | 2.5 | B | 60, 80, 100, 120 | |
| #1 (M2.0-M2.6) | 3.0 | B | 40, 60, 80, 100, 120 | |
| #1 (M2.0-M2.6) | 5.0 | A | 40, 60, 80, 100, 120, 150, 180, 200, 250, 300 | |
| #2 (M3.0-M5.0) | 5.0 | A | 40, 60, 80, 100, 120, 150, 180, 200, 250, 300, 400 | |
| #3 (M6.0-M8.0) | 7.0 | C | 60, 80, 100, 120 |
