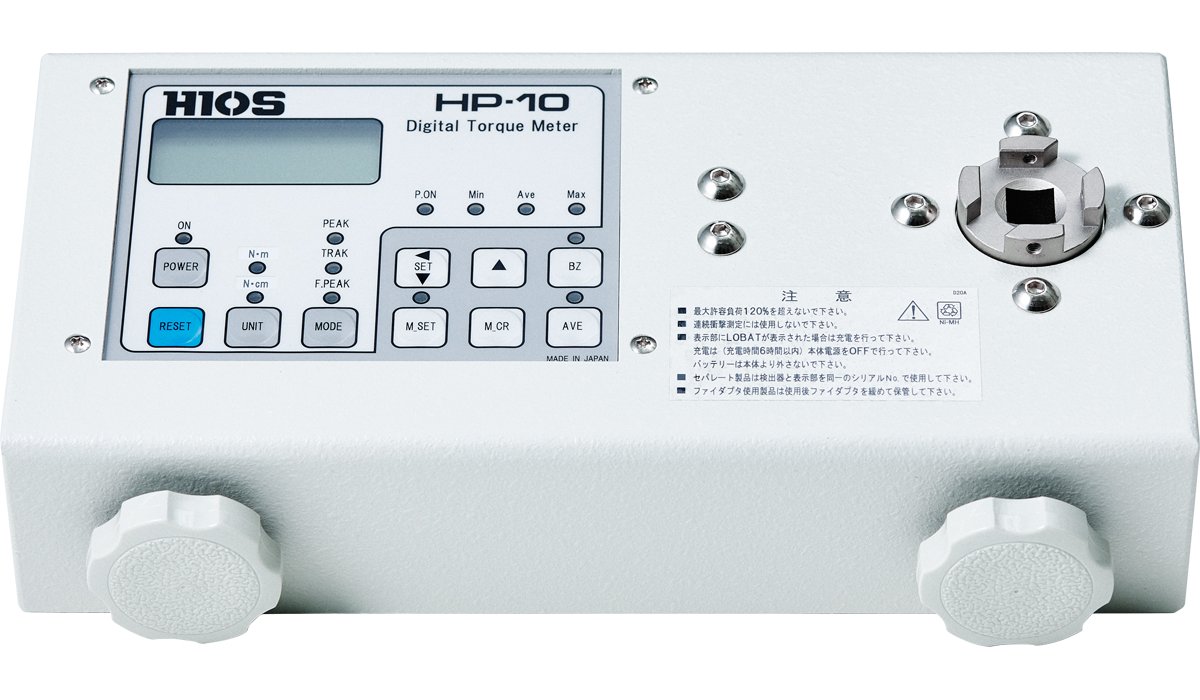

HP-10 (Japan Made)
Feature :
Use for making torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.
Measured data can be imported to a computer.
Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
With one unit of Torque Meter, max, min and ave torque values can be measured.
Torque for both clockwise or counterclockwise can be measured.
As a standard specificataon, data output and analogue output are available.
ˇ§Inspection Reportˇ¨ is attached to all the Torque Meters.
|
|
Model : | HP-10 |
| Measuring range | 0.015 - 1 Nm 0.15 - 9 lbf.in 0.15 - 10 kgf.cm |
|
| Accuracy | ˇÓ 0.5 % | |
| Rechargeable battery |
1.2 V / 5 pc NiMH 1000mA, continuous operating time 8 hours, charging time 6 hours, lifetime more than 300 recharging |
|
| Data output | USB (without cable) | |
| Measuring direction | left / right | |
| Units of measurement |
Nm lbf-in Kgf-cm |
|
| Menü |
english |
|
| Memory |
100 measurements |
|
| Dimensions |
230 x 124 x 65 mm |
|
| Weight |
1.8 kg |
|
| Application |
adjustment of auto schut off electric and pneumatic screwdrivers |
|
| Accessories |
Exclusive Battery Charge manufacturers certificate of calibration adapter carry case |
